Electro-hydraulic Weber PWV 30 EDS uniaxial pressing machine

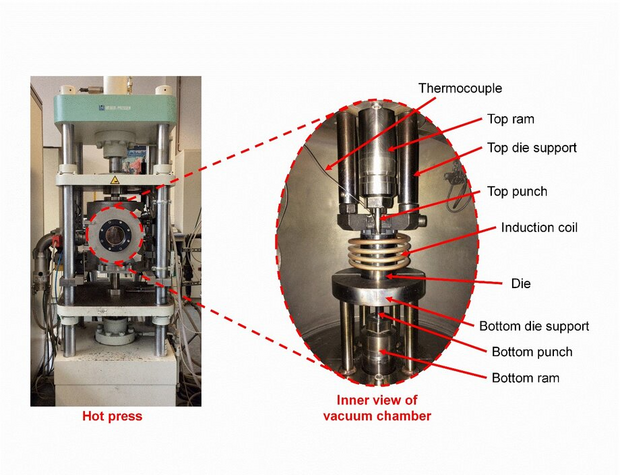

Two linked images of a hot press. On the left, a photograph of the press with its die assembly circled in red. On the right, a labeled diagram of the vacuum chamber's internal components, stacked top to bottom: thermocouple, rams, die supports, punches, and a central induction coil surrounding the die. Dashed red lines connect the diagram labels to the corresponding parts in the photograph.

Electro-hydraulic Weber PWV 30 EDS uniaxial pressing machine

Suitable for pressure-assisted sintering
Setups for hot pressing and extrusion available
Atmosphere: vacuum or inert gas
Maximum load: 350 kN
Maximum temperature: 973 K
Temperature control: Pt/PtRh thermocouple
Monitor of processing parameters: load, temperature, shrinkage

Information von from Melting and Casting Equipment from Alloy Design and Processing-Group

Name of contact person	group/department	telephone number	email address
Prof. Dr. Julia Hufenbach	Alloy Design and Processing	-152	j.k.hufenbach(at)ifw-dresden.de
Dr. Konrad Kosiba	Dr.-Ing. Konrad Kosiba	-171	k.kosiba(at)ifw-dresden.de
