Bose ElectroForce 3510

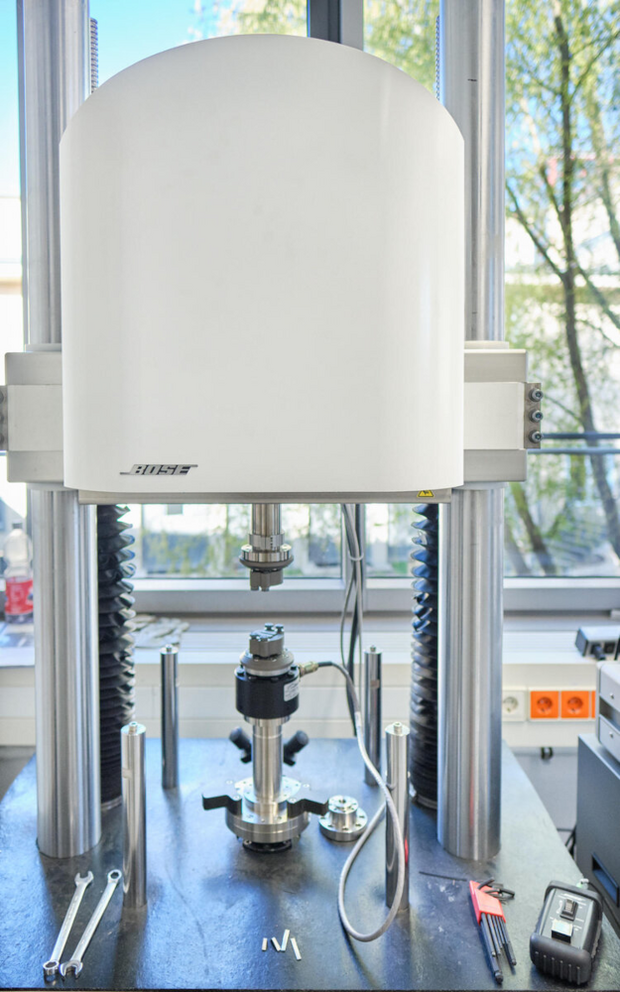

A Bose 3510 universal testing machine in a laboratory.

universal testing machine

  • Max. load 7.5 kN: (5.3 kN RMS), 49 Nm torsion
  • Cyclic test in tensile, compression and 3 point bend possible
  • Cyclic test with a frequency of 0.00001 Hz – 100 Hz
  • Linear rate 0.025 μm/s – 1.5 m/s
  • Max. deflection 5 mm,
  • Max distance of traverse 0-1000 mm
Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
