Instron 5969 electro-mechanical testing machine

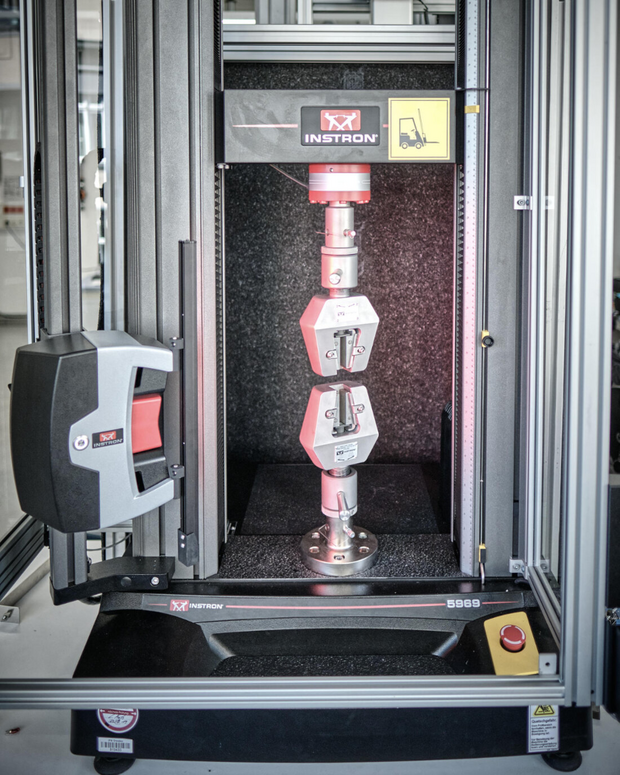

Instron 5969 testing machine with clamped specimen.
  • Available load cells: 1 kN, 10 kN und 50 kN
  • Axial stiffness of frame: 180 kN/mm
  • Max. distance of traverse: 1140 mm
  • Max. rate of traverse: 0.001 mm/min - 600 mm/min
  • Strain measurement with AVE2 from Instron Accuracy class 0.5
  • Tensile test of samples with DIN geometry A,B,E
  • Compression test of DIN samples down to a diameter of 4 mm
Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
