Instron 8502 servo-hydraulic testing machine

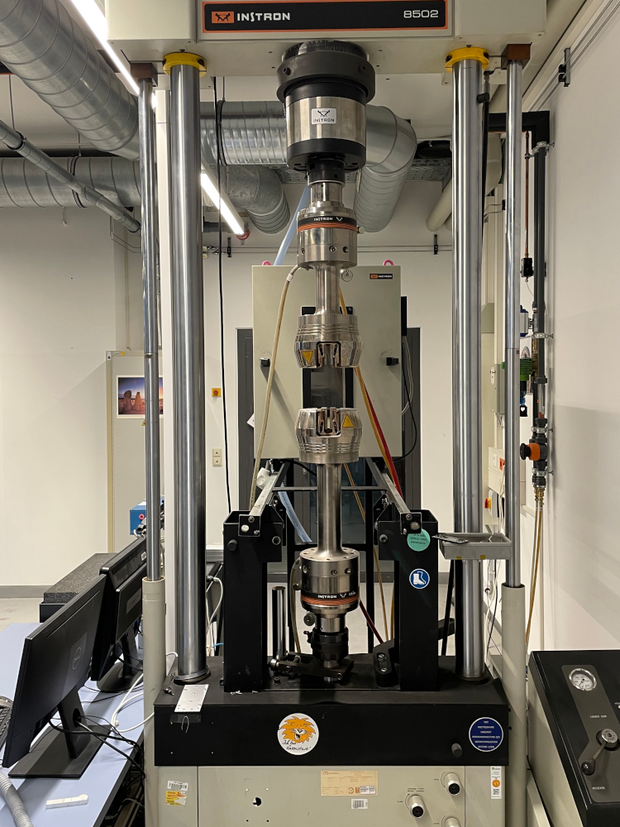

Instron 8502 testing machine with a cylindrical test specimen clamped inside in a laboratory room.

Instron 8502 servo-hydraulic testing machine

  • Load cell: 200 kN
  • Axial stiffness of frame: 180 kN/mm
  • Max. travel distance of traverse: 150 mm
  • Max. rate of traverse: 0.001 mm/min - 600 mm/min
  • Max frequency of testing: 100 Hz
  • Tensile test of samples with DIN geometry A,B,E
  • Climate chamber available (T=-140°C - 600°C; air)

Information von from Materials Testing Equipment from Alloy Design and Processing-Group

Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
