Instron 8562 electro-mechanical testing machine (high temperatures)

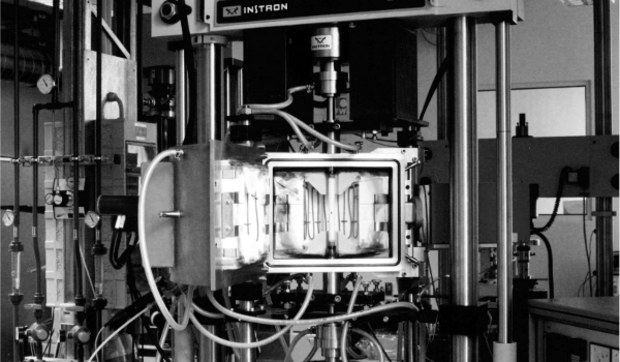

An open-top high-temperature furnace mounted in an Instron test frame.
  • Load cell: 10 kN
  • Max. rate of traverse: 0.002 mm/min - 350 mm/min
  • Compression test of DIN samples down to a diameter of 2 mm
  • Strain measurements with laser extensiometer
  • Tensile test of samples with DIN geometry A,B,E
  • Temperatures up to 1400°C (Vacuum or Ar atmosphere)
Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
