Nanovea Tribometer T50 (Pin & Disc)

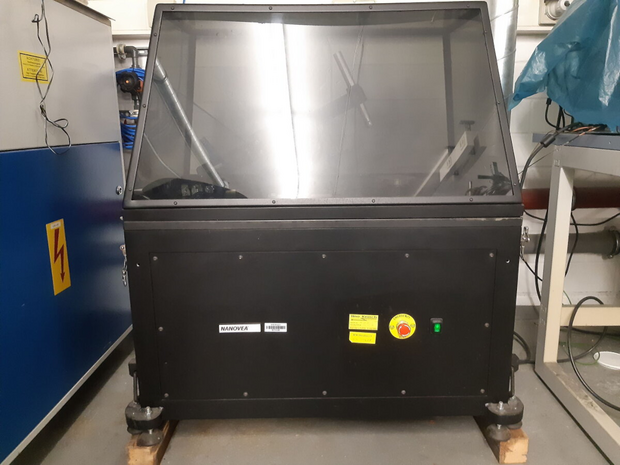

Black laboratory device with transparent lid, yellow emergency stop button, and green button on the front, standing on gray floor.
  • Wear test:
    • Pin (sample)-disc ( steal- or SiC-plate)
    • Ball (WC)- disc (sample)
  • Variable load 1 N, 2 N, 5 N, 10 N, 20 N
  • Wear pattern: spiral, circular, linear
  • Rotation speed 0.01 to 2000 rpm
  • Temperature of furnace until 600 °C
  • Max. traveling distance of radius: 46 mm
Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
