Zwick Z050 electro-mechanical testing machine

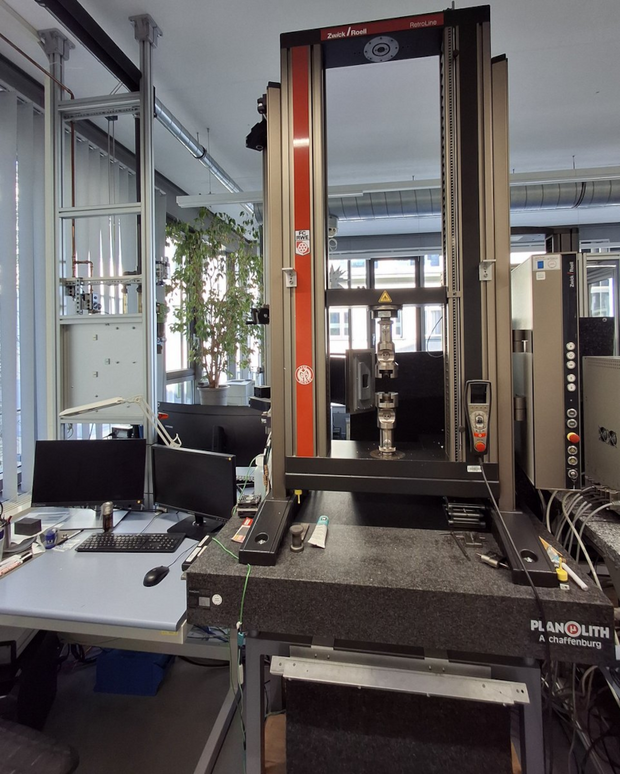

Zwick Z050 testing machine for material testing.
  • Load cell: 50 kN
  • Max. rate of traverse: 0.001 mm/min - 500 mm/min
  • Strain measurement with videoXtens 1-120
  • Compression test of DIN samples down to a diameter of 2 mm
  • Tensile test of samples with DIN geometry A,B,E
  • Compression test with heating plates under air condition up to 400 °C
Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
