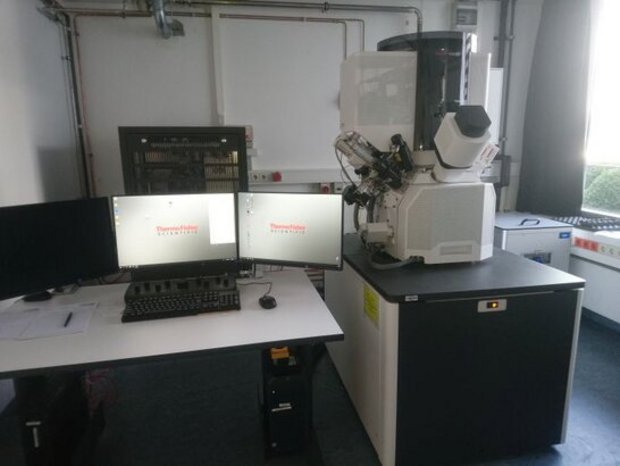

FIB in our lab

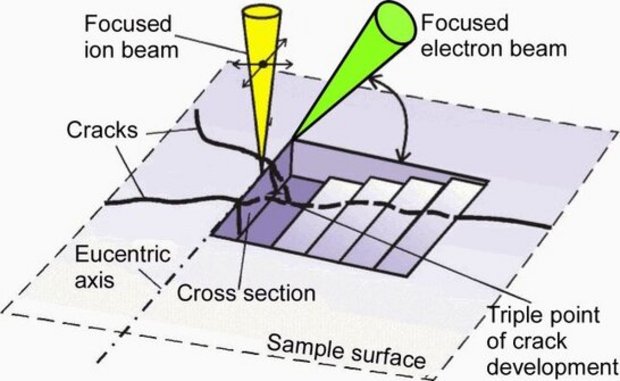

Sketch of the beam geometry in a dual beam FIB.
Scheme of 2-beam FIB (Modified from S. Menzel et al. Acta Metal. Slov. 10 (2004) 692), illustrating its principle of operation.

Focussed Ion Beam Microscope (FIB)

The Focussed Ion Beam (FIB) technology (FIB Helios 5 CX, ThermoScientific) is used for investigations in materials research or microelectronics, esp. for high contrast imaging of thin film microstructure using the channeling effect, cross section preparation, failure analysis, microstructuring, or thin film device modification. Using a focussed Gallium ion beam, it can precisely remove or deposit material at the sample surface on a submicron scale as well as image the sample surface or cross-section producing high quality contrast images with high magnifications.
