Quantum Design PPMS

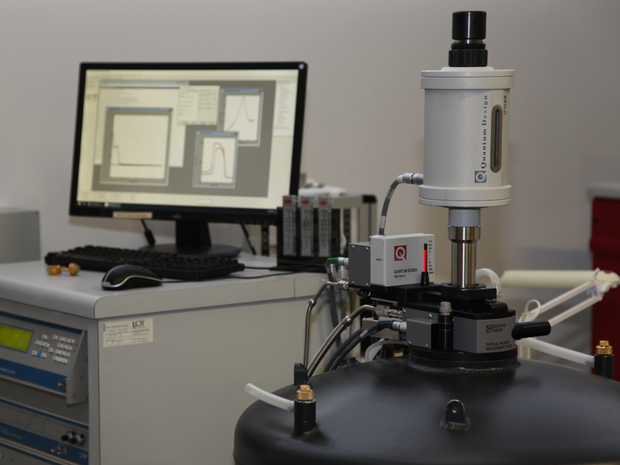

Laboratory device with measuring probe on round black housing in front of a monitor displaying graphs.
Temperature range:1.9K - 400K
Magnetic field:±9 T
Options:
  • Heat Capacity, also in-field measurements are possible to determine magnetocaloric properties (adiabatic temperature change)
  • AC-Transport and DC Resistivity, 4-Point spring-loaded measurement pucks are availible
  • VSM and VSM-Oven (T = 300 - 1000 K)
  • Thermal Transport, also in-field measurements
Black laboratory device with transparent lid, yellow emergency stop button, and green button on the front, standing on gray floor.
  • Wear test:
    • Pin (sample)-disc ( steal- or SiC-plate)
    • Ball (WC)- disc (sample)
  • Variable load 1 N, 2 N, 5 N, 10 N, 20 N
  • Wear pattern: spiral, circular, linear
  • Rotation speed 0.01 to 2000 rpm
  • Temperature of furnace until 600 °C
  • Max. traveling distance of radius: 46 mm

Information Magnetic Characterisation Techniques Equipment from Alloy Design and Processing-Group

Name of contact person group/department telephone number email address
Prof. Dr. Jens Freudenberger Alloy Design and Processing -550 J.Freudenberger(at)ifw-dresden.de
