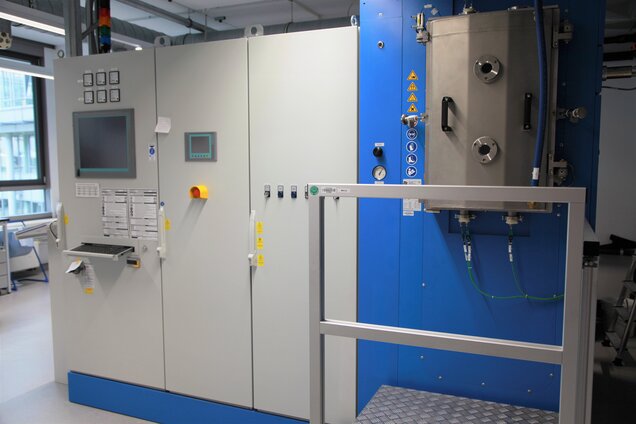

Our FAST/SPS technology allows rapid consolidation of powder materials. Among others, we are specialized in the processing and compacting of thermoelectric and topological nanopowders as well as composites. The simultaneous thermal and mechanical consolidation is realized by heating with high current and uniaxial pressure. This results in homogeneous volume heating and consolidation. Therefore, the powder is filled directly into the pressing tool that makes a pre-consolidation redundant.
| Pressing force | up to 250 kN |
| Heating power FAST/ SPS | 60 kW |
| Heating power induction | 80 kW |
| Heating power hybrid | 100 kW |
| Temperature | up to 2200°C |
| Atmosphere | Ar, N2, Vacuum |
| Graphite pressing tools | max. 2200°C and max. 50MPa |
| WC pressing tools | max. 1000°C and max. 200MPa |
| Diameters of pressing tools | 10 - 80 mm |
| Pressing force | 0.5 - 20 kN |
| Puls generator | 0 - 10 V, 0 - 1000 A |
| Temperature | up to 2500°C |
| Atmosphere | Argon, Vacuum and High-Vacuum |
| Graphite pressing tools | max. 2200°C and max. 50 MPa |
| High strength graphite pressing tools | max. 2500°C and max. 90 MPa |
| Diameters of pressing tools | 4, 5, 10 and 15 mm |

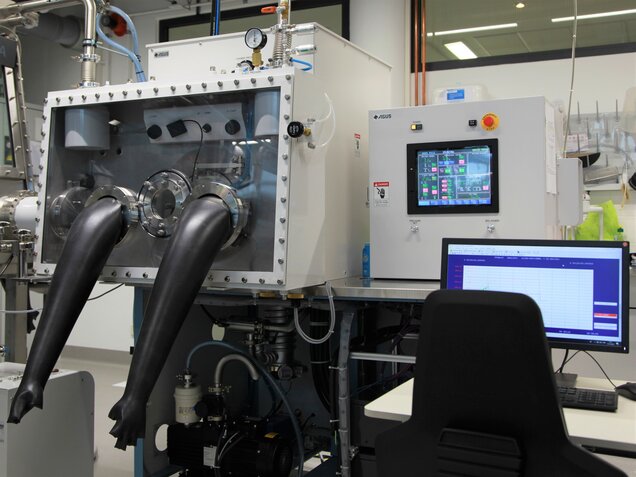

| Feature | Connected to glove box for sensitive materials |
